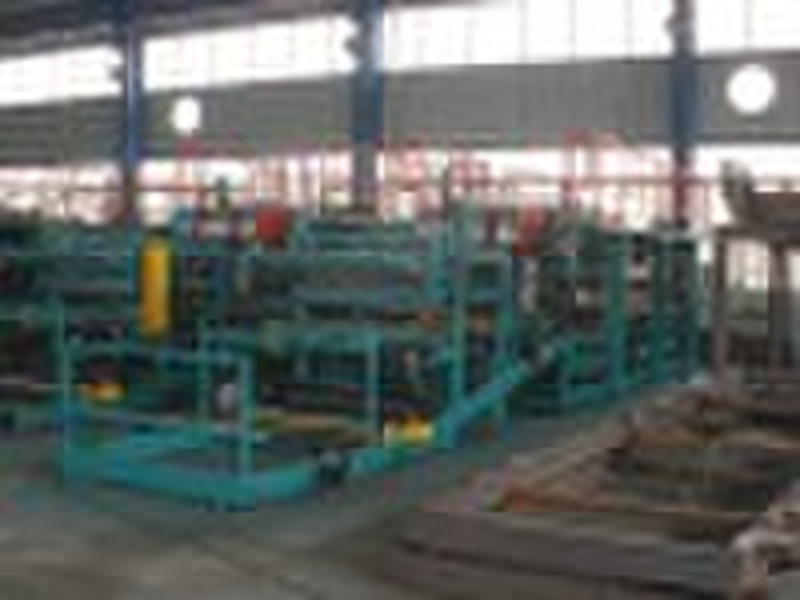

Automatic sandwich panel production line

Technical report of QLF-5 sandwich panel production linemeasurement50,000×2,600×3,000 mmweight20TControlling systemOMRON encoderMain engineCycloid pinwheel reducerProduction speed of compounding machineCycloid pinwheel reducer, 4-4.5m/min,speed of tegular machine 2.5m/minSheet type970 connected type(core material EPS(PU) flat boeard,EPS(PU) match board)Roll station 13 lines roller voltage380VComponent partsDecoiler, roll forming, feeding and guiding, cutting, exit rackCutting methodHydraulic control (milling cutter/click-die cttter)Material of rollerNo. 45 steel, chromeplatedOverall power35kwSynchronous controllerKMD04B series digital synchronous controllerEngine of trgular machineCycloid pinwheel reducerLeather roller of formig machine26 piecesNumber of engine22 piecesshaft6 piecesHeat pipe6pieces, 2KW/pieceapplicationRoof panel, wall panelPacking methodnudevalidity15 daysprice53,000USD/set
